LT-SIK868 Drone Telemetry Module

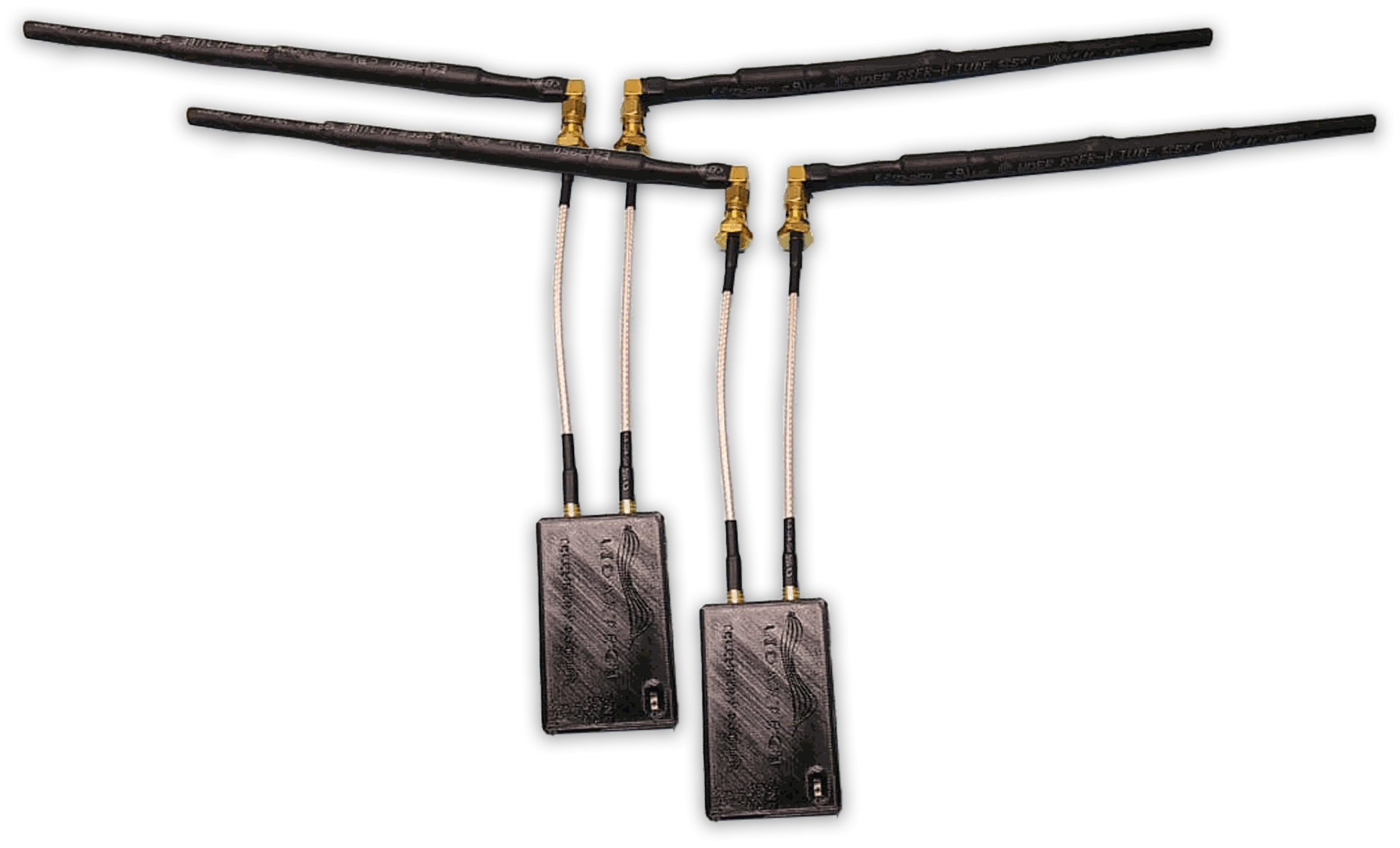

The LT-SIK868 is a state-of-the-art, indigenously developed, SiK-based UAV telemetry module. It is a small and lightweight radio that typically allows ranges significantly better than 5+ kilometers with a basic whip antenna kit. This radio is plug-and-play with all Pixhawk Standard and other flight controllers, providing the easiest way to set up a telemetry connection between the drone and a ground control station. It is compatible with Mission Planner, Ardupilot, QGroundControl, and PX4 Autopilot. It incorporates dual-antenna diversity guaranteeing reliable performance in challenging environments. It is based on the Si4463 EZRadioPRO™ transceiver.



 Odoo image and text block


5+ KM
Field tested communication range



MIMO 2x2 RX/TX
Two antenna diversity


Plug and play
Compatibility with Pixhawk Standard flight controllers


MAV Link
Protocol framing and status reporting integration


PERFORMANCE


Capacity

Frequency bands

Air data rates

Power output

Receiver sensitivity

RF front-end

Communication Range

Specification

868 MHz

 2 – 250 kbps (configurable)

 adjustable up to 500 mW (27 dBm), default 100 mW

117 dBm or better (bandwidth dependent)

0.6 dB LNA noise figure, 18.7 dB gain, OIP3 39.5 dBm

Several kilometers with basic antennas;
 extended range attainable with directional antennas

HARDWARE


Capacity

Dimensions (LxBxH)

Weight

Interface

RF connectors

Power supply

Operating temperature

Weather resistance

Specification

L: 55 mm, B: 10 mm, H: 35 mm (with housing)

20 g (including housing)

JST-GH 6-pin UART, 3.3 V logic levels

Dual MCX snap-on type

5 V nominal, max 500 mA (depending on RF power setting)

–20 °C to +40 °C

IP40

Odoo CMS - a big picture

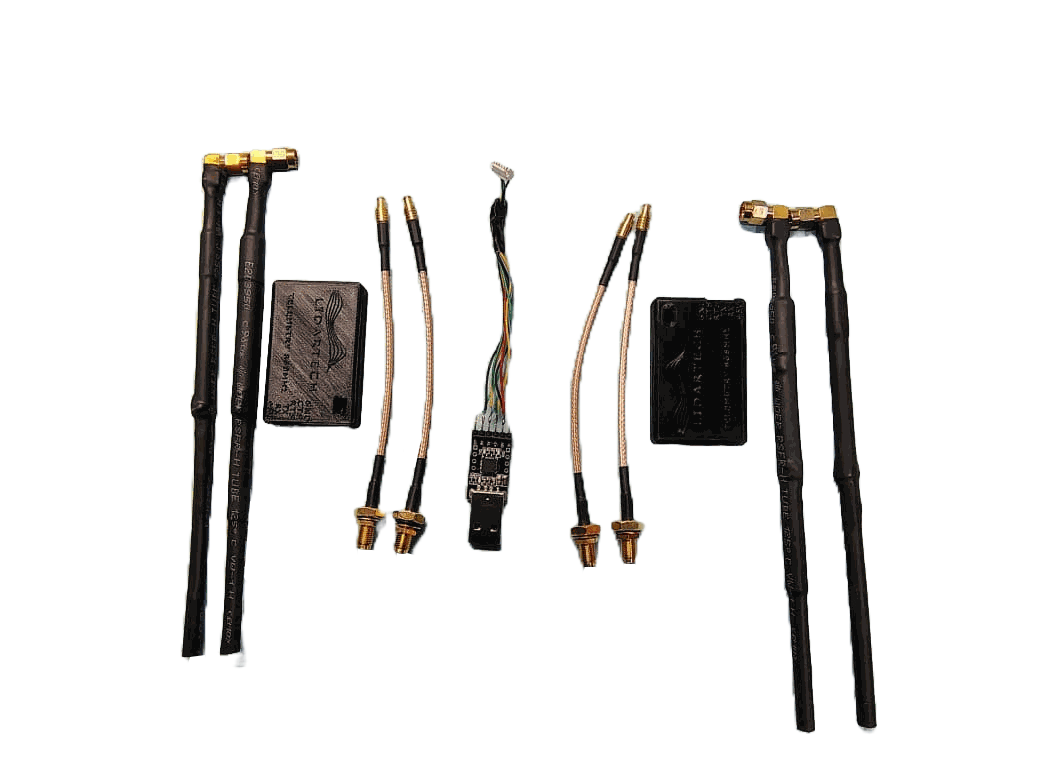

Kit contains:

2 x 868 MHz wireless modules

4 x antenna

1 x JST-GH-6P to USB-A

1 x JST-GH-6P to JST-GH-6P cable
